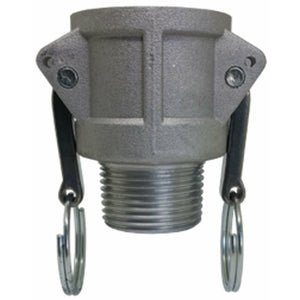

DIXON Camlock Type B Female Coupler x Male BSP

HD-ALDC050B

Size: 15mm
Material: Aluminium

Shipping rates calculator

Add To Wishlist

Applications:

The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials and vapors including cooling water, fuels, chemicals, cosmetics, food products, adhesives, dyes, pharmaceuticals, pellets and much more.

Construction:

Aluminium:Die Cast Aluminum body, stainless steel levers and mild steel pins

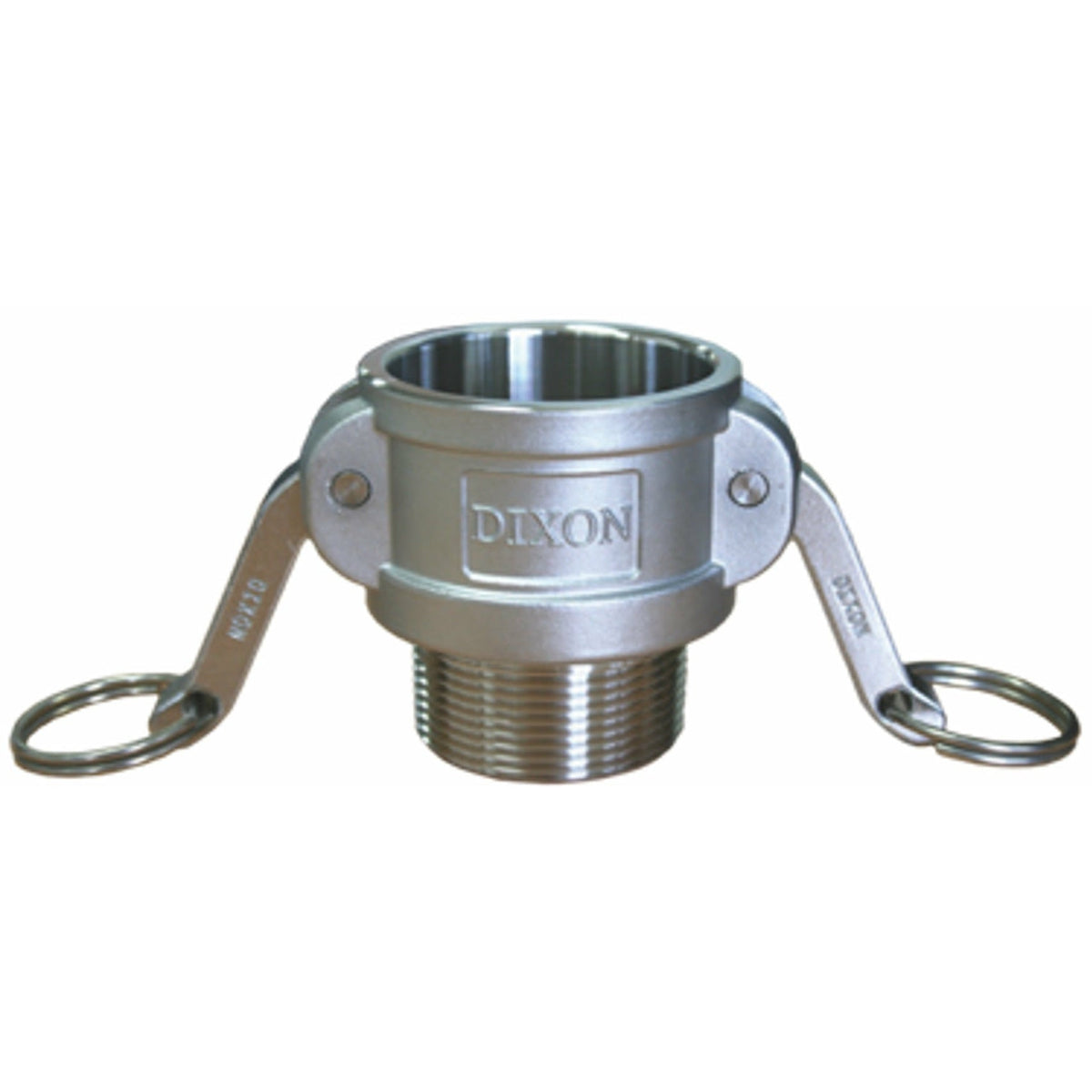

Stainless Steel: Stainless steel body, levers and pins

Bronze: Bronze body with stainless steel levers and pins

Brass:Brass body with stainless steel levers and pins

Size (mm) Max WP PSI
15 150
20 250
25 250
32 250
40 250
50 250
65 150
75 125
100 100
125 75
150 75



Safety Notes:

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
